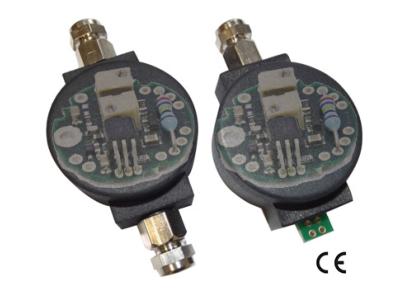

Mounting in enclosure box ,2 versions: input and output cable, input by PCB connexion and output cable
Power voltage of the PCB : 8.5Vdc to 30.0Vdc
Signal output : 0- +/-10.0V_0-5.0V_2.5+/-2.5V_0-10.0V_5.0+/-5.0V
Precision on linearity: 0,02%
Bandwidth : 0-1000Hz
|
| Mounting in enclosure box ,2 versions: input and output cable, input by PCB connexion and output cable
Power voltage of the amplifier : 9.5Vdc to 30.0Vdc
Signal output : 4-20mA _ 12+/-8mA with 3 wires
Precision on linearity: 0,02%
Bandwidth : 0-1000Hz
|

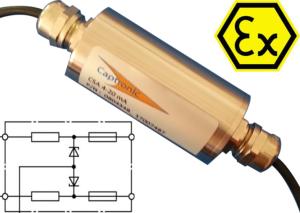

| Mounting in metallic enclosure box: input and output cable with fittings.
Power voltage of the amplifier : 8.5Vdc to 28.0Vdc
Signal output : 4-20mA with 2 wires
Precision on linearity: 0,02%
Bandwidth : 0-1000Hz
N.B.: components an electrical connexions must be dealed carefully due to the specific ATEX standard and environment |
| Setup via USB link on PC interface
Sortie Tension 0-10Vdc et courant 4-20 mA avec 2 contacts relais à seuils programmables
Voltage 0-10V and Curent 4-20mA output _ 2 single pole relays
Mode autonome avec sauvegarde
Dynamic vizualisaton of the signal
Acquisition and record of datas while display
10 points linearization for high accuracy monitoring
Accuracy : 16 bits
|
|
High accuracy : 24 bits
Assembly and mounting on DIN rail: profiles according to 50022 and 50035 .
Adjustable supply voltage : 9.0Vdc to 36.0Vdc
Output signal : 0-10Vdc,+/-10.0Vdc ,0-5Vdc,+/-5.0Vdc,0-20mA, 4-20mA, 0+/-20mA ,
Adjustable bandwidth by trimmer : 0,8 -2000Hz
|
| The miniature amplifier AMP-GP1 for strain gauge bridge can be programmed with : USB_PR_02
Mounting in polymer enclosure: input and output wires soldered onPCB
Dimensions : 10mm x 12mm x 4,50mm
Operating temperature : -40°C...+130°C
Supply voltage : from 2,65 to 5,50 Vdc
Output voltage : from 2,65 to 5,50Vdc
Output setup Zero balance (unloaded) : 0 to 100%
Precision on linearity: 0,1%
Bandwidth min. : 0-10KHz
|
| Mounting on DIN rail: profile according to 50022 and 50035 .
Setup of supply voltage and on the front panel zero and gain.
Adjustable supply voltage of sensor :5.0Vdc to 12.0Vdc
For the sensor, 6 range of supply voltage selection by DIP SWITCHES (10.00V alimentation):
Signal output : 0-+/-10.0Vdc , 0-20mA, 4-20mA, 0+/-20mA ,
Accuracy : 0,05%
Bandwidth : 0-1000Hz
Options : bandwidth till 10KHz
|
| | |
|
