- Miniature force transducer for measurement in tension-compression.
- Force range : +/- 0-5kN to +/- 0-50 kN
- Sensivity from 2,00 mV/V.
- Standard accuracy 0.45%.
- Material : stainless steel for the load cell and cap
- Protection index :IP65
- Option: high level output amplifier-conditionner miniature : 0+/-10V, 2,5+/-2,5V, 5.00V+/-5V, 12mA+/-8mA
|
|
- Miniature force transducer for measurement in tension-compression.
- Force range : +/- 0-5daN to +/- 0-500daN
- Sensivity from 2,00 mV/V.
- Standard accuracy 0.25%.
- Material : stainless steel for the load cell and cap
- Protection index :IP64
- Option: high level output amplifier-conditionner miniature : 0+/-10V, 2,5+/-2,5V, 5.00V+/-5V, 12mA+/-8mA
|
|
- Load cell based on strain gauges equipment for force measurement in tension-compression.
- Force range : +/-5 daN to+/-250daN
- Sensivity from 1,00 to 1,50 mV/V according to scale output.
- Standard accuracy 0.20%
- Material : stainless steel for the load cell / polymer and industrial silicon
- Protection index :IP54
- Option: high level output amplifier-conditionner miniature in a small waterproof enclosure : 0+/-10V, 2,5+/-2,5V, 5.00V+/-5V, 12mA+/-8mA
|
|
- Load cell based on strain gauges equipment for force measurement in tension-compression.
- Force range : +/-50 daN to+/-20.000daN
- Sensivity from 1.25 to 2.0 mV/V according to scale output.
- Standard accuracy 0.25%
- Material : stainless steel for the load cell / polymer and industrial silicon
- Protection index :IP67
- Option: high level output amplifier-conditionner miniature in a small waterproof enclosure : 0+/-10V, 2,5+/-2,5V, 5.00V+/-5V, 12mA+/-8mA
|
|

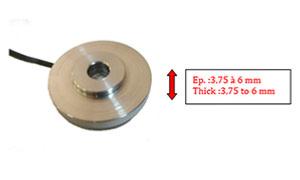

- Thru hole force transducer for compression measurement with low thickness : screw, bolt ...
- Internal diameter : 5 to 8 mm
- External diameter : 25 mm
- Force range : 5 daN to 550daN
- Sensivity from 1,20 to 2 mV/V according to scale output.
- Standard accuracy 0.55%
- Material : stainless steel or aluminum for the load cell
- Protection index : IP56
- Option: high level output amplifier-conditionner miniature integrated in the load cell or in a smal enclosure : 0-10V, 0-5.0V, 4-20mA,USB digital output
|
|

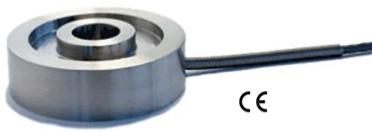

- Thru hole force transducer for compression measurement with low thickness : screw, bolt ...
- Internal diameter : 5 to 52 mm
- External diameter : 22 to 95 mm
- Force range : 1000 daN to 1500KN
- Sensivity from 1,50 to 2,00 mV/V according to scale output.
- Standard accuracy : 1.55%
- Material : stainless steel
- Protection index : IP56
- Option: high level output amplifier-conditionner miniature integrated in the load cell or in a smal enclosure : 0-10V, 0-5.0V, 4-20mA,USB digital output
|
|

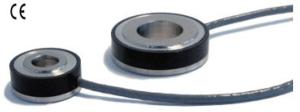

- Thru hole force transducer for compression measurement with low thickness : screw, bolt ...
- Internal diameter : 3 to 30 mm
- External diameter : 75 mm
- Force range : 500 daN to 25000daN
- Sensivity from 1,50 to 2,00 mV/V according to scale output.
- Standard accuracy : 0.75%
- Material : stainless steel
- Protection index : IP65
- Option: high level output amplifier-conditionner miniature integrated in the load cell or in a smal enclosure : 0-10V, 0-5.0V, 4-20mA,USB digital output
|
|
- Thru hole force transducer for compression measurement with low thickness : screw, bolt ...
- Internal diameter : 3 to 18 mm
- External diameter : 50 mm
- Force range : 100 daN to 5000daN
- Sensivity from 1,50 to 2,00 mV/V according to scale output.
- Standard accuracy : 0.65%
- Material : stainless steel
- Protection index : IP65
- Option: high level output amplifier-conditionner miniature integrated in the load cell or in a smal enclosure : 0-10V, 0-5.0V, 4-20mA,USB digital output
|
|

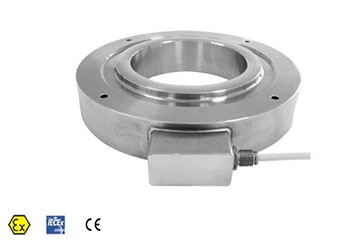

- Thru hole force transducer for tension measurement with low thickness : cable, rope, rods ...
- Internal diameter : 50 to 224,5 mm
- External diameter : 165 to 320 mm
- Force range : 300 KN to 2500KN
- Sensivity : 2,00 mV/V according to scale output.
- Standard accuracy : 0.25%
- Material : stainless steel 17.4PH
- Protection index : IP68
- Option: high level output amplifier-conditionner miniature integrated in the load cell or in a smal enclosure : 0-10V, 0-5.0V, 4-20mA,USB digital output
|
|
|
